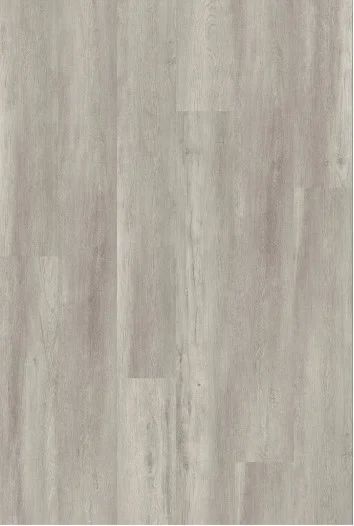

Hickory Wood
| Category | SPC Flooring |
|---|---|
| Size | 180 x 1220 mm |
| Design Name | Hickory Wood |
| Surface | Matt |
| Product Name | Hickory Wood​ |
| Size | 180 x 1220 mm |
| Thickness | 3 to 7 mm |
| Wear layer | 0.3 and 0.5 mm |
| Installation Method | Unilin Uniclic |
How to install the SPC Flooring?
1. Adjust row so end cut is not less than 8".
2. Use shims to allow 3/8" expansion gap between the planks and the walls, or stationary interior room objects, so there is room for normal expansion and movement.
3. Starting from the LEFT with the tongue facing the wall, carefully place the first board in place.
4. Align the next piece by overlapping the short end of the first board. Engage the short end at a 45° angle of the tongue and groove.
5. The board must be flat to engage completely. Tap lightly into place by using a rubber mallet and tapping block to firmly lock short end. Continue in this manner until reaching the final plank in the first row.
6. Cut the final board piece to length.
7. Begin the second row with the cut piece from the first row. If the cut piece is shorter than 8" (20cm), do not use it. Instead, begin with a new board to the left as necessary to align the edges of the end joint of the first row.
8. Carefully push the board down until the tongue and groove lock together on the long side and ends.
9. Position the first board of the second row in place by angling it up slightly, pushing forward and interlocking the long side of the tongue. Slide the board to the left as necessary to align the edges of the end joint of the first row.
10. Carefully push the board down until the tongue and groove lock together on the long side and ends.
11. Install the second board of the second row (same as step 4 above). Slide close to the end joint without touching it. Ensure the board lays flat.
12. Attach a scrap piece of floor to bridge the gap between the ends of planks.
13. Tap firmly but gently on end joint with a rubber mallet and tapping block to fully engage short end. Before moving on to the next board, ensure the end joints are flush and tight.
14. Install the remaining boards and rows in the same container.
15. Cut the last board to size. If necessary, complete the tight fit by tapping the board into place with a pull bar.
16. Whenever practical, use cut pieces from previous rows as the starter board to reduce waste.
17. Maintain 8" spacing between end joints after the first rows for the best appearance.
| Specification | Property | Test Method | Result |
|---|---|---|---|
| SPC core thickness: 4 to 7 mm | Dimensions | EN 427 | 1220*180mm |
| Wear layer: 0.3/0.5 mm | Thickness Over All | EN 428 | 3.0 mm, 4.0 mm, 5.0 mm, 7.0 mm |
| Thickness Wear Layer | EN 429 | 0.3 mm, 0.5 mm | |
| Plank size: 180x1220 mm, 302x604 mm | Pell Strength of Layers | EN 431 | Pass |
| Shear Forces of Layers | EN 432 | Good | |
| Padding: IXPE Black 1.00/1.50 mm | Residual Indentations | EN 433 | Mean Value ≤ 0.1mm |
| Dimension Stability | EN 434 | Shrinkage ≤ 0.12%/Curling ≤ 1.2mm | |
| Material: 100% Virgin | Resistance to Chemicals | EN 423 | Class 0 |
| Click lock: Unilin Uniclic | Castor Chair Continuous | EN 425 | No Disturbance/No Delamination |
| Light Fastness | ISO 105 B02 | ≥ 6 | |
| Warranty: 15 years residential and 10 years commercial | ASTM E84-03 | NFPA Class B1 | |
| Slip Resistance | DIN 51130 | R9 |
